EPDM Gasket for Tri Clamp (Tri Clover)
EPDM Tri Clamp (Tri Clover) gaskets provide a hygienic, leak-free seal between two Tri Clamp ferrules. They are widely used in food, beverage, brewing, and CIP installations where chemical resistance is required. EPDM is softer than many other elastomers and offers excellent sealing performance in systems using strong acids or caustics.
Specifications:

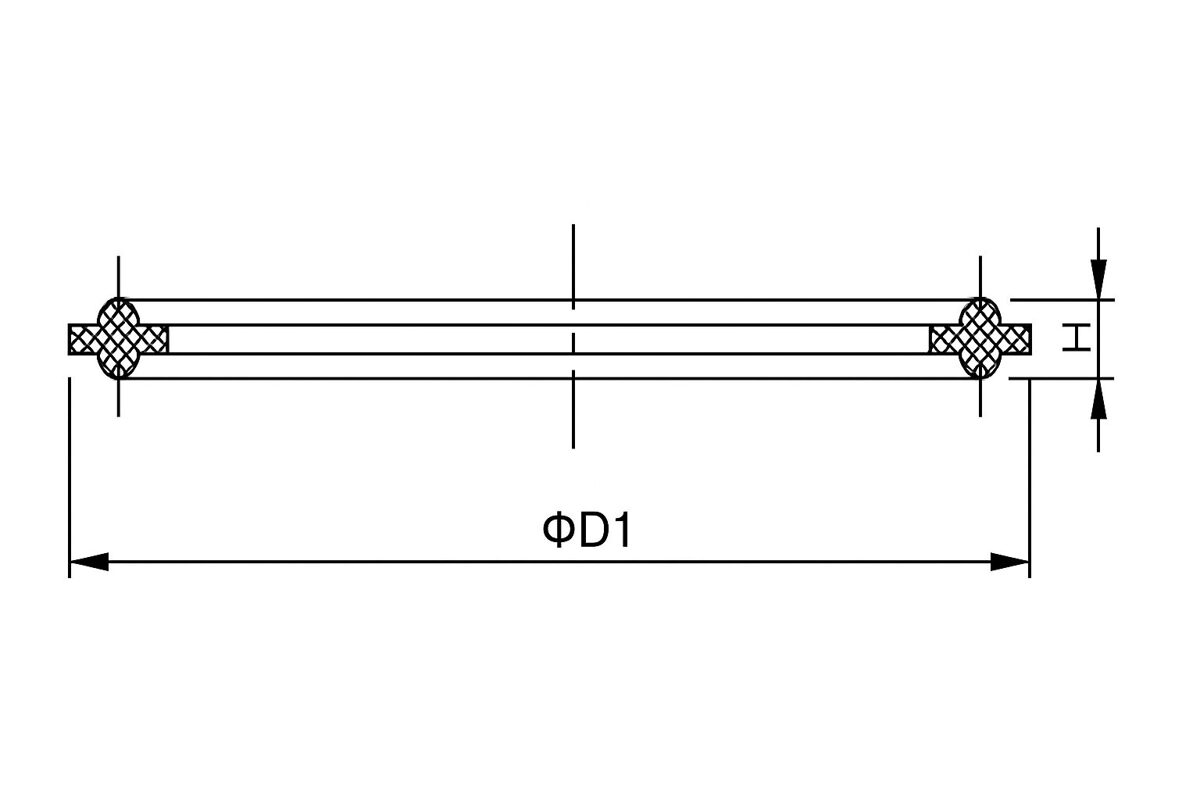

| Size | D1, mm | I, mm |
|---|---|---|
| 0.5" | 25.4 | 5 |
| 0.75" | 34 | 5 |
| 1.5" (ID options 25 / 32 / 38 mm) | 50.5 | 5 |
| 2" | 64 | 5.5 |
| 2.5" | 77.5 | 5.5 |
| 3" | 91 | 5.5 |
| 4" | 119 | 5.5 |
| 5" | 145 | 5.5 |
| 6" | 167 | 5.5 |
| 6.5" | 183 | 5.5 |
| 8" | 217 | 5.5 |
| 10" | 268 | 5.5 |
Applications & Compatibility:
EPDM gaskets are suitable for Tri Clamp fittings in breweries, beverage lines, CIP systems, dairy plants and food-processing equipment. They provide excellent resistance to strong acids, caustics and abrasion, making them ideal for harsh CIP chemicals. Compatible with Tri Clamp ferrules and clamps in 3A sanitary dimensioning.
Materials & Standards:
- EPDM elastomer (temperature range approx. −34°C to +149°C)
- Excellent resistance to acids, caustics and abrasion
- 3A sanitary standard — 3A vs DIN Tri-Clamp Fittings
- Tri Clamp (Triclover) size system — Tri Clamp Dimensions & Sizing Guide
From stock in Europe. Fast delivery.
