Gate Valve
All prices above are inclusive of 21% VAT. If you are a VAT-registered business within the EU (excluding Latvia), your invoice will reflect a 0% VAT rate, and the VAT amount will be deducted from the prices listed above.
Gate Valve, Stainless Steel 304, Female BSPTThis stainless-steel gate valve is designed for reliable shut-off control in industrial fluid and steam applications. It features a female BSPT threaded connection, inside-screw wedge mechanism, and red handwheel operation. Suitable for process piping systems requiring durable, high-temperature and high-pressure performance.
Specifications:
- Max temperature 150C.
- Max pressure 16 bars
- BSPT threads 3/4", 1"
- PTFE seal

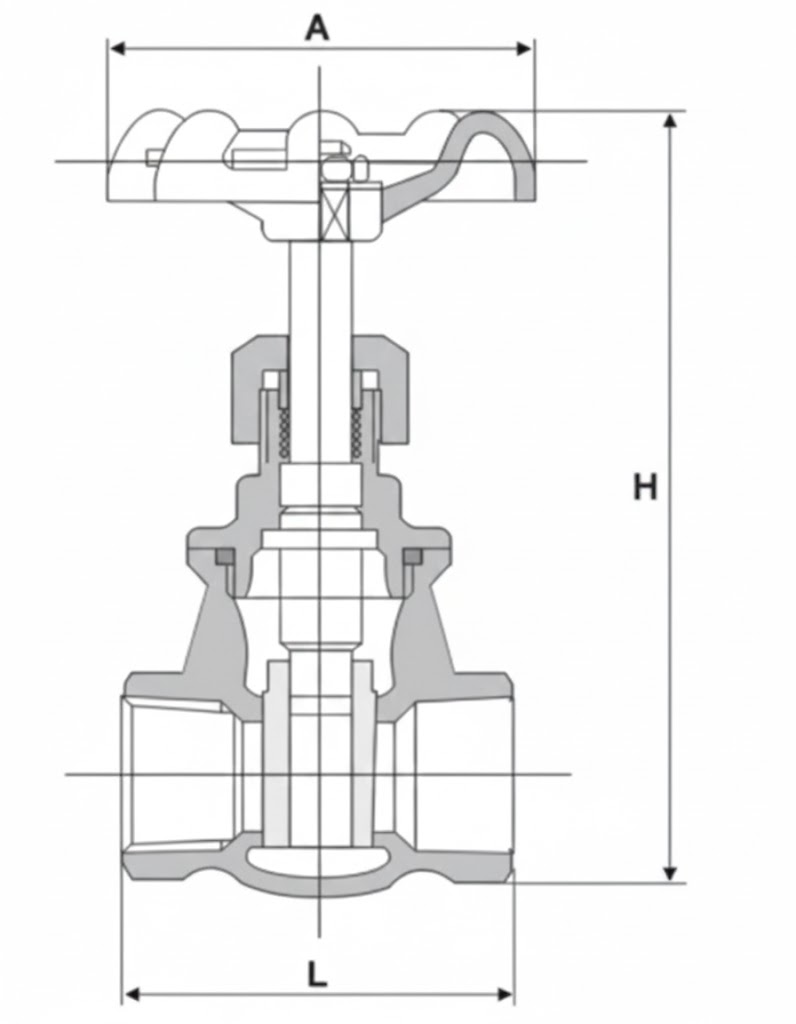

| Nominal size | A,mm | L,mm | H,mm |
|---|---|---|---|
| 3/4" | 65 | 59 | 117 |
| 1" |
Applications & Compatibility:
Widely used for steam lines, hot water distribution, process piping, and general industrial shut-off control. Compatible with BSPT threaded systems in breweries, food processing facilities, heating systems, and utility services.
Materials & Standards:
- Food-grade stainless steel 304 valve body.
- Female BSPT threaded ends.
- Red handwheel for manual operation.
- 3A sanitary standard — 3A vs DIN Tri-Clamp Fittings
- Tri Clamp size system — Tri Clamp Dimensions & Sizing Guide
From stock in Europe. Fast delivery.
