Tri Clamp 1.5" 3-Way Ball Valve SS304

All prices above are inclusive of 21% VAT. If you are a VAT-registered business within the EU (excluding Latvia), your invoice will show 0% VAT and the VAT amount will be deducted from the prices listed above.

Tri Clamp 1.5" 3-Way Ball Valve SS304

This Tri Clamp 1.5" 3-way ball valve is designed for switching and distributing product flow in sanitary process lines. The Tri Clamp connection allows quick, hygienic installation and easy removal for cleaning. Manufactured from AISI 304 stainless steel with a 19 mm bore, it is suitable for food, beverage and brewing applications.

Specifications:

• Port configuration: 3-way (L-port or T-port, depending on selected variant)
• Inner diameter (bore): 19 mm
• Tri Clamp size: 50.5 mm (1.5")
• Connection type: Tri Clamp (Triclover) sanitary ends
• Material: stainless steel AISI 304 (wetted parts)

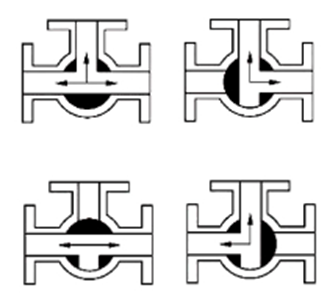

L-port and T-port options:

L-port (L-type) 3-way ball valve

The L-port ball directs flow from one inlet to one of two outlets. It is typically used for selecting between two product lines (A or B) or for diverting flow.

T-port (T-type) 3-way ball valve

The T-port ball can direct flow from one inlet to either of two outlets or to both outlets at the same time, depending on handle position. It is typically used where product must be distributed or blended between lines.

Applications & compatibility:

This 3-way ball valve is intended for sanitary systems where product flow needs to be switched, diverted or distributed between two or more process lines. Typical use cases include breweries, soft drink production, CIP return manifolds and other food and beverage processes. The valve is compatible with standard 1.5" Tri Clamp ferrules (50.5 mm) in 3A sanitary dimensioning and can be integrated into distribution manifolds and transfer lines.

Materials & standards:

• Food-grade stainless steel AISI 304 for wetted parts
• Sanitary Tri Clamp (Triclover) connection
• 3A sanitary standard – 3A vs DIN Tri-Clamp Fittings
• Tri Clamp size system – Tri Clamp Dimensions & Sizing Guide

Built to last: AISI 304 stainless steel provides good corrosion resistance and temperature resistance for typical food, beverage and brewing processes.

From stock in Europe: All items are stocked in our European warehouse for fast and cost-effective shipping across the EU.
