Diaphragm Valve Sanitary Tri Clamp 1.5" SS316
All prices above are inclusive of 21% VAT. If you are a VAT-registered business within the EU (excluding Latvia), your invoice will reflect a 0% VAT rate, and the VAT amount will be deducted from the prices listed above.
Sanitary Tri Clamp 1.5" Diaphragm Valve SS316
The Sanitary Tri Clamp 1.5" Diaphragm Valve SS316 is designed for precise manual control of fluid flow with low turbulence and minimal back pressure. Its hygienic internal geometry and diaphragm sealing make it suitable for critical food, beverage and pharmaceutical applications. The valve is supplied with a 1.5" Tri Clamp connection and is available for several tube diameter options (22/25 mm, 29/32 mm, 35/38 mm), allowing flexible integration into existing sanitary piping.

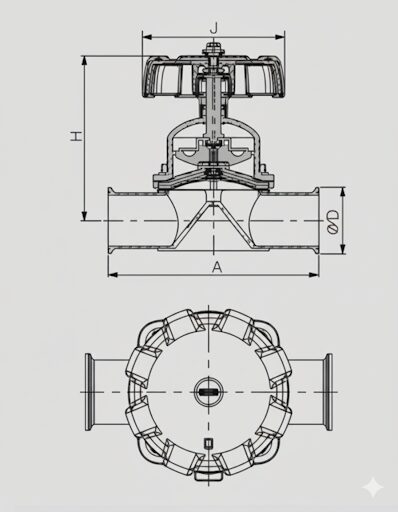

Specifications:
| Nominal size | Tri Clamp size (D), mm | A, mm | H, mm | J, mm |
|---|---|---|---|---|
| dn25 | 50.5 | 126 | 115 | 89 |
| dn32 | 50.5 | 161 | 121 | 110 |
| dn38 | 50.5 | 161 | 123 | 110 |
Applications & Compatibility:
This sanitary diaphragm valve is used in food, beverage, brewery and pharmaceutical lines where low dead volume and cleanability are critical. It connects via a 1.5" Tri Clamp ferrule (50.5 mm) following 3A sanitary dimensions and can be combined with tubing in the inner (outer) diameter ranges 22 (25) mm, 29 (32) mm and 35 (38) mm. Typical applications include dosing lines, sampling branches, bypasses and process sections requiring accurate flow restriction and shut-off.
Materials & Standards:
- Food-grade stainless steel AISI 316
- 3A sanitary standard — 3A vs DIN Tri-Clamp Fittings
- Tri Clamp (Triclover) size system — Tri Clamp Dimensions & Sizing Guide
From stock in Europe. Fast delivery.
