2" to 1.5" Tri Clamp Concentric Reducer Tube SS316
All prices above are inclusive of 21% VAT. If you are a VAT-registered business within the EU (excluding Latvia), your invoice will reflect a 0% VAT rate, and the VAT amount will be deducted from the prices listed above.
2" to 1.5" Tri Clamp Concentric Reducer, SS316
This sanitary concentric reducer connects 2" Tri Clamp tubing to 1.5" Tri Clamp tubing in hygienic process lines. The reducer is clamped on both ends, providing a non-permanent, easily removable connection for cleaning and reconfiguration. Manufactured from stainless steel AISI 316, it is suitable for beverage, dairy and general food-processing applications.
Specifications:

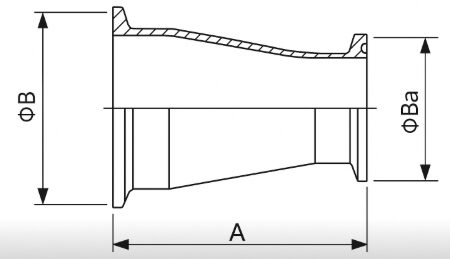

| Size | A, mm | B, mm | Ba, mm |
|---|---|---|---|
| 2" / 1.5" | 97 | 64 | 50.5 |
Applications & Compatibility:
This concentric reducer is used to transition between 2" and 1.5" Tri Clamp pipework in breweries, CIP lines, filtration skids and other hygienic systems. The concentric design maintains a central flow path and smooth internal profile for effective cleaning and low turbulence. Compatible with standard 2" (64 mm OD) and 1.5" (50.5 mm OD) Tri Clamp ferrules.
Materials & Standards:
- Food-grade stainless steel AISI 316
- 3A sanitary standard — 3A vs DIN Tri-Clamp Fittings
- Tri Clamp (Triclover) size system — Tri Clamp Dimensions & Sizing Guide
From stock in Europe. Fast delivery.
